Manufacturing

Pre-Filled Pen Cartridges

Pen Cartridges

A pre-mixed, stabilized peptide solution filled into cartridges for pens — supplied as cartridge only or pen + cartridge.

Start Your ProjectAll production formats

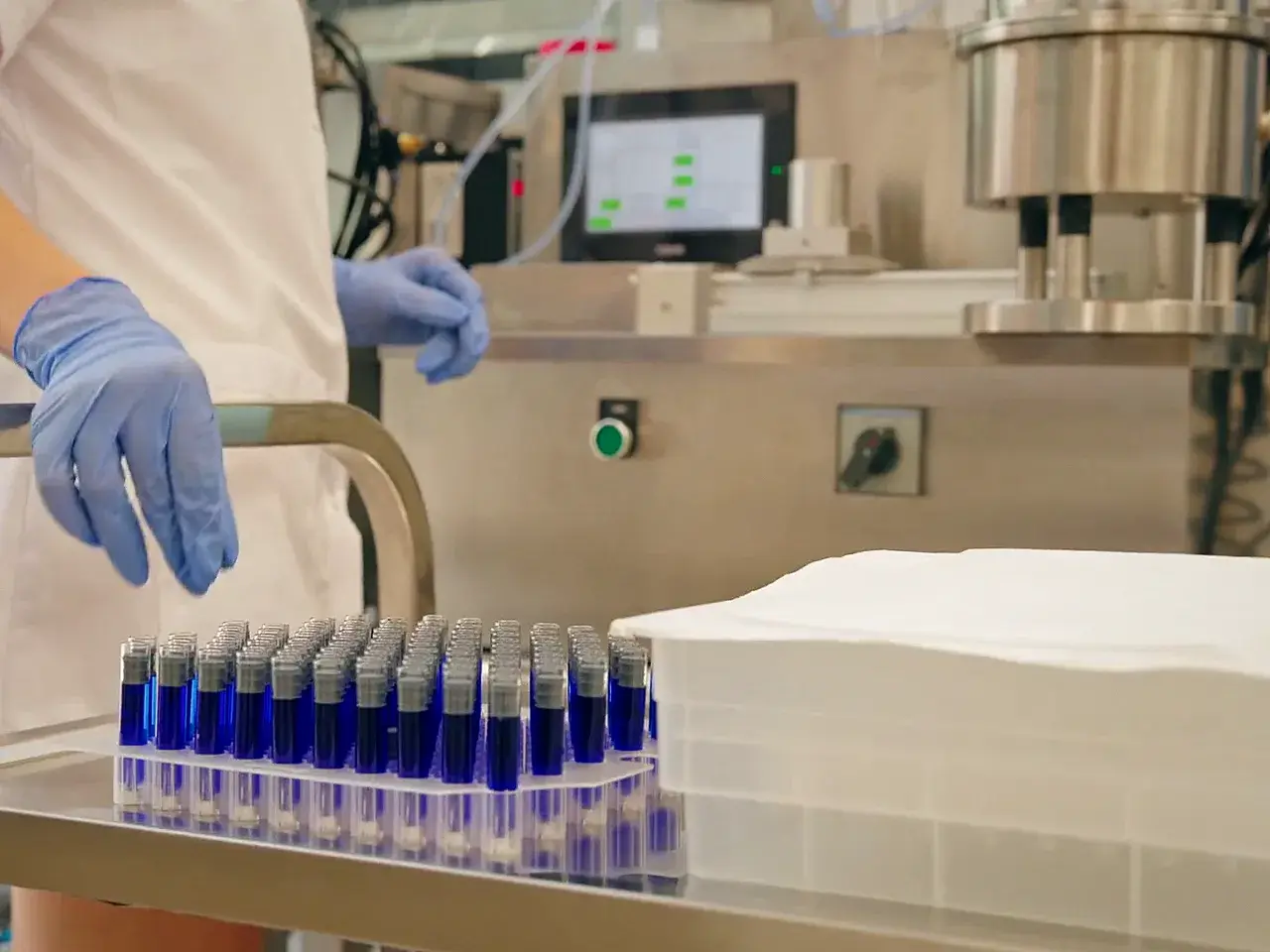

Gloved technician beside a rack of filled cartridges in front of the filling machine
How it works

From formulation to a finished product.

The peptide solution is formulated, pre-mixed and stabilized, then filled into cartridges — by hand by trained laboratory staff, or on automated filling and deaeration systems. Each cartridge is closed with a stopper and deaerated; for pen + cartridge products, the filled cartridge is then assembled into the pen.

  1. 01

    Sterile cartridge unpacking

    Empty cartridges are unpacked in the laboratory, ready for filling.

  2. 02

    Filling preparation

    Cartridges and the formulated peptide solution are prepared for filling.

  3. 03

    Cartridge filling

    The solution is filled into the cartridges — by hand by laboratory staff, or automatically on a filling system.

  4. 04

    Stopper placement

    Each filled cartridge is closed with a stopper.

  5. 05

    Cartridge deaeration

    Air is removed from the filled cartridges — on the automated systems, by the same machine that fills them.

  6. 06

    Pen assembly

    For pen + cartridge products, the cartridge is assembled into the pen.

  7. 07

    Labelling and packaging

    Cartridges are labelled and packed — cartridge only or pen + cartridge — under your brand or as White Label.

Filling methods

Two ways to fill your cartridges.

The same cartridge options, filled by one of two routes — choose the one that fits your production run.

  • 01 / 02

    Hand Filling

    Cartridges filled by hand by trained laboratory staff — a flexible route for custom formulations and smaller production runs.

    Cartridges are prepared, filled by hand under controlled laboratory conditions, closed with a stopper and deaerated. Manual filling makes it straightforward to change formulation, concentration or volume between runs.

    Suited to

    • Custom formulations
    • Smaller production runs
    • Changing formulation, concentration or volume between runs

    In the video

    1. 01Sterile cartridge unpacking
    2. 02Cartridge filling preparation
    3. 03Manual cartridge filling
    4. 04Stopper placement
    5. 05Cartridge deaeration
    6. 06Final pen assembly

  • 02 / 02

    Automated Machine Filling

    Machine filling for larger, repeatable cartridge runs, with the same formulation filled consistently across a batch.

    Automated filling and deaeration systems fill the solution into cartridges and remove the air from them — on a single-cartridge system or on a larger multi-cartridge system. Automation suits recurring products and higher volumes where run-to-run consistency matters.

    Suited to

    • Single-cartridge automated filling & deaeration system
    • 100-cartridge automated filling & deaeration system
    • Larger, repeatable production runs

    In the video

    1. 01Filling preparation
    2. 02Automated filling
    3. 03Automated deaeration
    4. 04Labelling and packaging
From the production floor

Inside the process.

  • Hand filling
  • 100-cartridge filling system
  • Pen assembly
Capabilities

Capabilities and specifications.

Suited to

  • A pre-mixed, stabilized liquid format for pens
  • Custom formulations and smaller runs, filled by hand
  • Larger, repeatable runs on automated filling systems
Specifications
SpecificationDetail
Filling methodsHand filling; automated machine filling
Filling equipmentSingle-cartridge automated filling & deaeration system; 100-cartridge automated filling & deaeration system
Fill volumesTo be confirmed
Cartridge sizesTo be confirmed
Run size / throughputTo be confirmed
PeptidesSingle peptides and peptide blends
BrandingPrivate Label or White Label
Customization

Customization options.

Each project is built around your product — choose the options that fit your line.

Private & White Label
  • 01Single peptides or peptide blends
  • 02Custom concentration and fill volume
  • 03Cartridge only or pen + cartridge
  • 04Hand filling or automated machine filling
  • 05Your branding or White Label
